Automatic Projection Welding Workstation for Automotive Door Frames

Automotive door frame welding involves multiple welding positions and different product variants. Manual positioning and separate welding operations can make production changes difficult to manage. This automatic projection welding workstation integrates workpiece transfer and nut projection welding into a single production system.

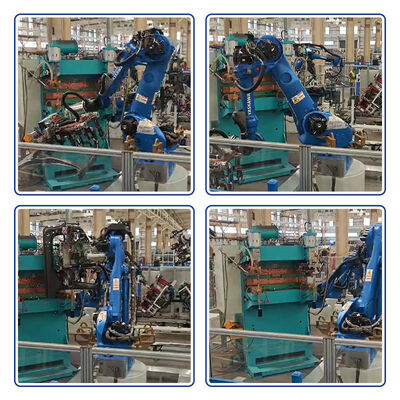

The mechanical gripper moves door frame components to designated welding positions, where the system performs projection welding operations along with integrated air blowing, slag removal, and inspection processes. A key advantage is flexible product switching, accommodating up to 8 product variants for automotive production environments requiring multiple door frame models on the same system.

• Automatic Workpiece Handling: Mechanical gripper transfers automotive door frame components to welding positions, ensuring consistent transfer and reducing manual positioning requirements
• 8-Product Flexible Switching: Supports flexible switching between 8 different product types, ideal for manufacturers producing multiple door frame variants
• Automatic Nut Projection Welding: Designed for automatic projection welding of nuts onto automotive door frame components with coordinated positioning and handling
• Integrated Air Blowing and Slag Removal: Built-in cleaning functions incorporated into the production sequence, eliminating separate manual cleaning operations
• Automatic Weld Inspection: Integrated inspection function identifies welding problems during production rather than relying on downstream manual inspection
• Missing-Weld and Wrong-Weld Alarm: Automatic alarm system alerts operators when welding results don't match expected production conditions

The complete production process follows this sequence:

• Workpiece loading
• Automatic gripping
• Product identification / selection
• Positioning
• Nut projection welding
• Air blowing
• Slag removal
• Weld inspection
• Alarm if required
• Finished workpiece handling

The exact sequence can be configured according to customer's door frame structure and production requirements. Unlike conventional manual projection welding machines, this workstation combines workpiece movement and welding operations into a dedicated production system.

Projection welding is commonly used when nuts need to be joined to sheet-metal components at defined positions. For automotive door frame production, the welding system must control more than welding current - workpieces must reach correct positions and nuts must be properly located before welding.

The automated workstation integrates:

• Workpiece positioning
• Nut welding
• Product handling
• Post-welding cleaning
• Weld inspection

This integrated approach is more suitable for automated production than using standalone welding machines with manual workpiece positioning.

While standalone projection welders work for manual loading and positioning, dedicated workstations provide greater value for production involving multiple product variants and repeated welding operations. This automotive door frame workstation addresses several production requirements simultaneously:

• Automatic workpiece transfer
• Multi-product production
• Automatic nut projection welding
• Integrated cleaning
• Weld inspection
• Missing-weld alarm
• Wrong-weld alarm

Instead of treating welding, handling, and inspection as separate operations, these functions are organized into one cohesive production system.

Haifei develops both welding equipment and customized automated welding systems for automotive components and industrial applications. The company's product structure includes flexible projection welding lines and custom machines alongside standard resistance welding equipment.

For automotive door frame projects, solutions are developed around complete production processes rather than selecting welding machines separately from workpiece handling and inspection systems. This approach is particularly beneficial for projects involving:

• Multiple product variants
• Automatic workpiece handling
• Nut projection welding
• Dedicated fixtures
• Weld inspection
• Automatic fault alarms
• Integrated cleaning
• Customized production requirements
