HFTR-45000 Servo Capacitor Discharge Spot Welding Machine
Detail Information
Brand Name
Haifei
Model Number
HFTR-45000
Highlight:
HFTR-45000 servo spot welder
,capacitor discharge welding machine
,spot welding machine with warranty
Product Description

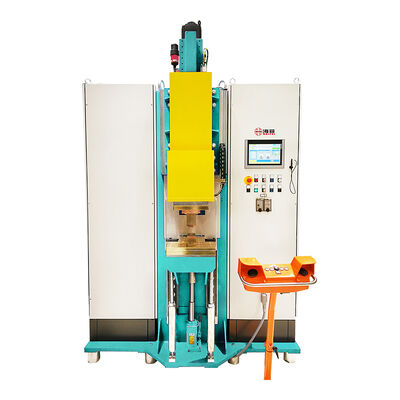

HFTR-45000 Servo Capacitor Discharge Spot Welding Machine
Product Overview
The HFTR-45000 utilizes stored electrical energy for resistance welding instead of conventional continuous welding power supplies. Energy discharges through the welding circuit when electrodes contact the workpiece, generating concentrated heat precisely at the welding point.
This energy-storage welding principle makes the machine ideal for applications requiring high instantaneous welding currents. Configured as a servo welding machine, the HFTR-45000 provides controlled electrode movement and repeatable welding conditions for precision applications.
The machine supports both spot welding and projection welding across various ferrous and non-ferrous materials.
Technical Specifications
| Model | HFTR-45000 |
| Machine Type | Servo Capacitor Discharge Spot Welding Machine |
| Maximum Short-Circuit Current | 200 kA |
| Rated Duty Cycle | 50% |
| Secondary Voltage | 17-19 V |
| Rated Capacity | 50000UF |
Servo Capacitor Discharge Welding Process
Capacitor discharge welding systems store electrical energy before the welding cycle begins. During welding, this stored energy releases through the welding circuit, concentrating at the electrode-workpiece contact area.
The complete welding sequence includes:
- Energy storage
- Workpiece positioning
- Electrode approach
- Electrode pressure application
- Energy discharge
- Weld formation
- Holding period
- Electrode release
For projection welding, the projection on nuts, bolts, or metal components concentrates welding current and mechanical force at defined locations. The servo system adds precise mechanical movement control, with motion and force configurations tailored to specific workpiece and production requirements.
Compatible Materials and Applications
The HFTR-45000 is designed for metal components requiring resistance spot or projection welding.
| Workpiece / Material | Typical Application |
| Steel | Resistance spot welding |
| Iron | Resistance spot welding |
| Stainless steel | Spot welding |
| Copper | Conductive component welding |
| Silver | Electrical component welding |
| Nickel | Conductive metal welding |
| Alloy materials | Application-specific resistance welding |
| High-strength steel | Automotive component welding |
| Hot-formed steel | Automotive structural component welding |
| Galvanized sheet | Automotive and sheet-metal welding |
| Nuts | Projection welding |
| Bolts | Projection welding |
Material thickness, electrode configuration, welding position, and required joint strength should be evaluated during equipment selection.
Automotive Welding Applications
Automotive manufacturing utilizes high-strength steel, hot-formed steel, and galvanized sheet for structural and body components, often requiring carefully controlled resistance welding conditions.
High-Strength Steel: Used where higher material strength is required. Welding conditions should be established according to specific steel grade and component thickness.
Hot-Formed Steel: Used in automotive structural components. Joint structure, material condition, and electrode access must be considered during welding process development.
Galvanized Sheet: Zinc coating changes electrode-workpiece contact conditions. Electrode condition and welding parameters require careful consideration during process development.
Nut and Bolt Projection Welding: Projection geometry concentrates current and pressure at intended welding locations, making fixture positioning and electrode alignment critical for production consistency.
Why Choose Haifei?
Haifei develops resistance welding equipment for standard and application-specific production requirements, including spot welding machines, capacitor welding machines, seam welding machines, diffusion welding machines, and customized automatic welding equipment.
For servo capacitor discharge welding projects, equipment selection can be combined with:
- Welding process evaluation
- Sample welding
- Electrode design
- Fixture development
- Servo configuration
- Production automation
- Application-specific customization
This comprehensive approach is particularly valuable when customer workpieces cannot be accurately evaluated from material and thickness specifications alone.
Frequently Asked Questions
What is the HFTR-45000?
The HFTR-45000 is a servo capacitor discharge spot welding machine designed for high-current resistance spot and projection welding of ferrous and non-ferrous metal components.
What is the maximum short-circuit current?
The specified maximum short-circuit current is 200 kA.
What materials can the HFTR-45000 weld?
The product information lists steel, iron, stainless steel, copper, silver, nickel and alloy materials. It is also applicable to high-strength steel, hot-formed steel and galvanized sheet applications.
Can the HFTR-45000 weld nuts and bolts?
Yes. Nut and bolt projection welding is specifically included in the product's listed applications.
Can it be used for automotive welding?
Yes. The source information specifically identifies automotive high-strength steel, hot-formed steel, galvanized sheet and nut/bolt projection welding as application areas.
